Used KUKA KR 8 R1440‑2 arc HW Industrial Robot for Continuous‑path Manufacturing
Used KUKA KR 8 R1440‑2 arc HW Industrial Robot for Continuous‑path Manufacturing
Extra Information:
|
Brand:
|
KUKA Robotics |
| Model: | KR 8 R1440-2 arc HW |
| Product Type: | 6 Axis Compact Robot |
| Base Dimension: | 333mm×307mm |
| Weight: | 167kg |

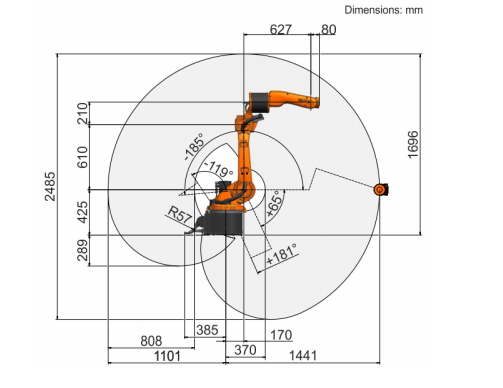

| Reach: | 1441mm |
| Payload: | 8kg |
| Mounting: | Floor/ceiling‑mount |
| Protection: | Std: IP65 |
| Controller: | KR C5 |
| Controller: | KR C5-2 |

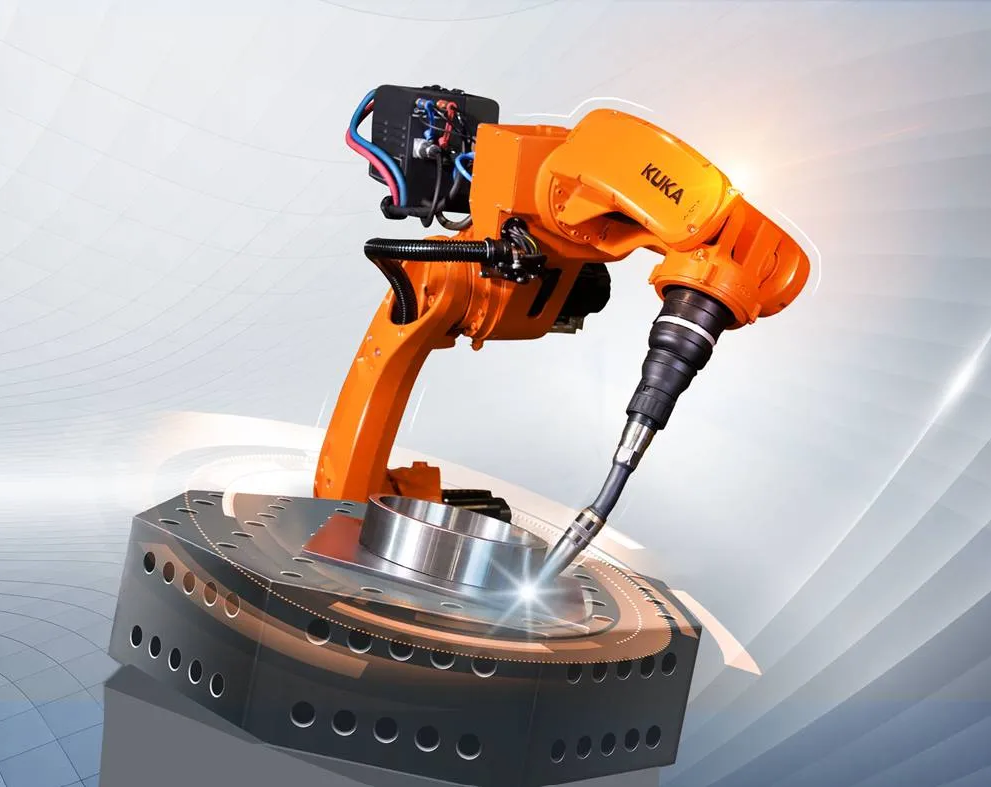

The KUKA KR 8 R1440‑2 arc HW is a 6‑axis hollow‑wrist process robot within KR CYBERTECH nano ARC series. It carries 8 kg rated payload and 1441 mm maximum reach, with ±0.04 mm pose repeatability. The hollow‑wrist design accommodates internal cable and hose routing for welding, dispensing and cutting tools.

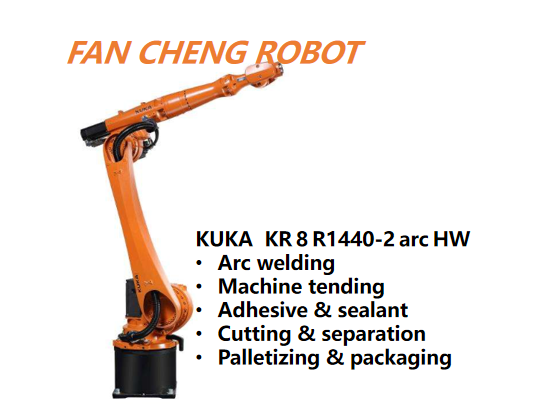

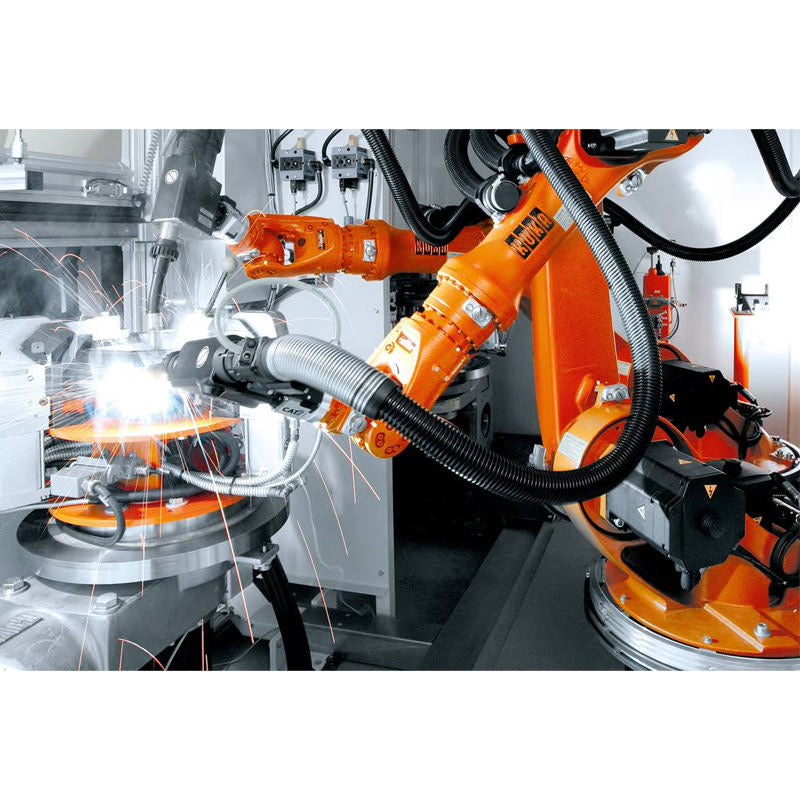

Full‑range mounting options are available: floor, wall, ceiling and angled positions. Robot body IP65, wrist IP54. The compact footprint combined with high mechanical rigidity delivers stable high‑speed continuous‑path motion. It is well‑suited for arc welding, adhesive dispensing, cutting and material handling, compatible with KR C5 / KR C5‑2 controllers.
