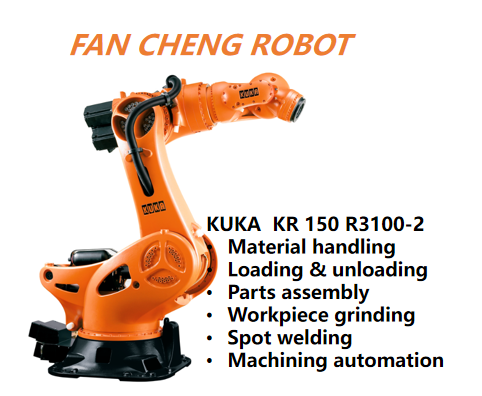

Used KUKA KR 150 R3100-2 Robot | 150kg Payload 3100mm Reach for Material Handling
Used KUKA KR 150 R3100-2 Robot | 150kg Payload 3100mm Reach for Material Handling
Extra Information:
|
Brand:
|
KUKA Robotics |
| Model: | KR 150 R3100-2 |
| Product Type: | 6 Axis Articulated Industrial Robot |
| Base Dimension: | 754mm×754mm |
| Weight: | 1105kg |
| Reach: | 3100mm |
| Payload: | 150kg |
| Mounting: | Floor‑mount |
| Protection: | IP65, IP67 |
| Controller: | KR C5 |
| Controller: | KR C5-2 |
The KR 150 R3100-2 is the standard 6-axis mechanical body of KUKA QUANTEC-2 series with 150kg payload, a general heavy-duty robot body featuring a working radius of 3100mm. Adopting the original high-strength integrated cast aluminum structure, the robot body delivers outstanding structural rigidity and strong resistance to deformation and impact for long-duration continuous heavy-duty operation. It features original repeat positioning accuracy of ±0.06mm with smooth and stable axis movement. The core gearbox is inspected, free from abnormal backlash and oil leakage. The main body reaches IP65 protection grade, and the wrist has reliable protection, suitable for regular industrial workshops with dust and humidity. The 3100mm extended reach provides a large working coverage while maintaining 150kg rated payload, satisfying automation requirements for deep working stations.
