Used ABB IRB6700-245/3.00 6 Axis Articulated Robot, 245kg Load, 3m Reach for Machine Tending, Material Handling & Welding
Used ABB IRB6700-245/3.00 6 Axis Articulated Robot, 245kg Load, 3m Reach for Machine Tending, Material Handling & Welding
|
Item
|
Specification |
| Brand |
ABB
|
| Model |
IRB6700-245/3.00
|
| Axes | 6 Axes |
| Rated Payload | 245kg |

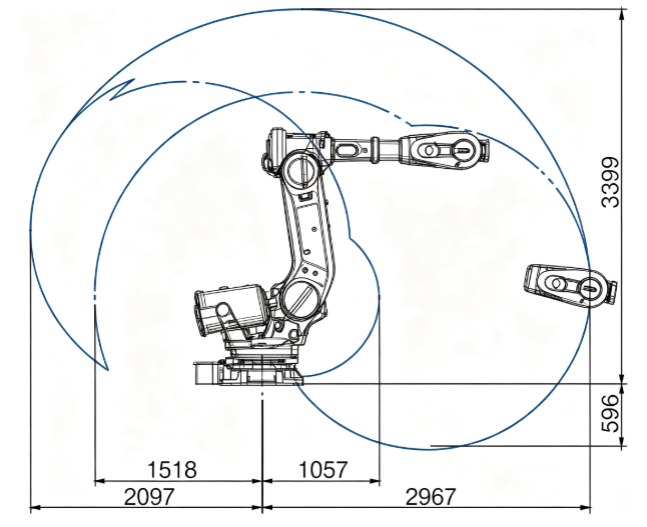

| Max. Reach | 3000 mm |
| Robot Weight | 1540kg |
| Mounting Type | Floor mount |
| Position Repeatability | 0.05mm |
| Path Repeatability | 0.10mm |
| IP Rating | IP67 |
|
Operating Ambient Temp.
|
+5℃ ~ +50℃ |
| Operating Noise Level | ≤71 dB(A) |
| Applications | Handling/Tending/Welding |

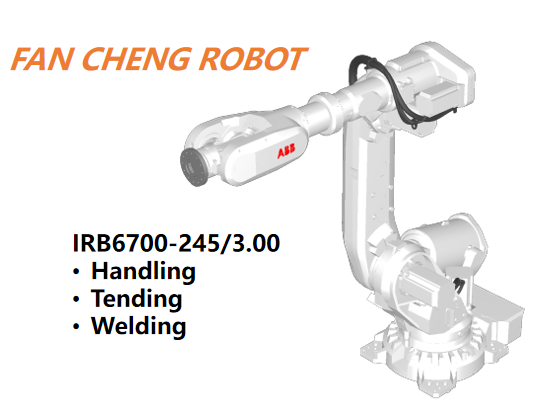

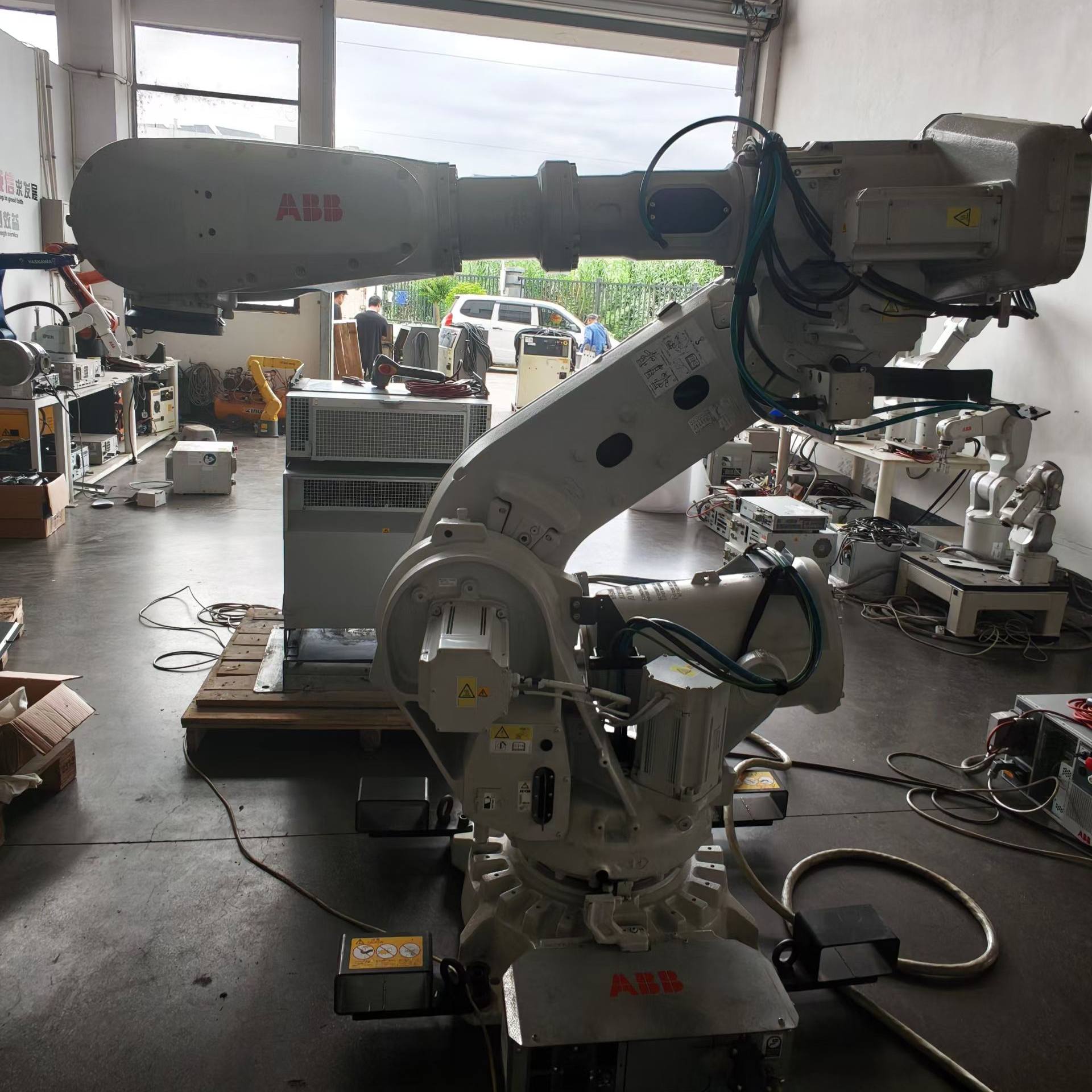

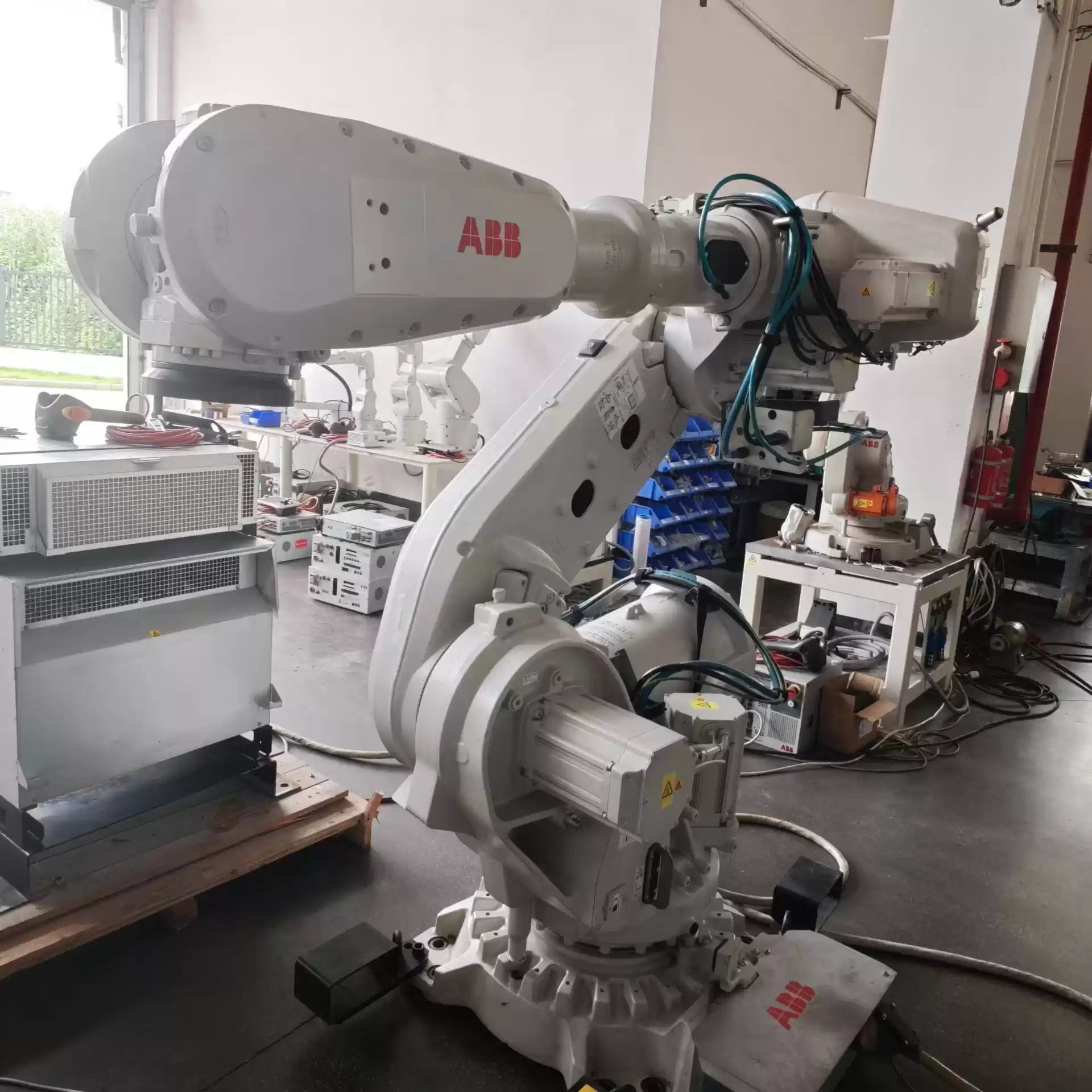

This unit is the 7th-generation heavy-duty 6-axis articulated robot, ABB IRB6700-245/3.00. It features a rated payload of 245 kg and a maximum vertical reach of 3000 mm for floor mounting installation.
Evaluated to ISO 9283 standards, it provides 0.05 mm position repeatability and 0.10 mm path repeatability. The robot weighs 1540 kg with standard IP67 protection, delivering rigid mechanical construction and consistent load performance.
It operates steadily at ambient temperatures between +5℃ and +50℃, with operating noise ≤71 dB(A).
The robot has undergone full inspection and is fully functional. Ideal for material handling, machine tending and welding applications, such as heavy workpiece loading/unloading, heavy assembly, spot welding and workpiece grinding.
As a cost-efficient refurbished automation option with short lead time, it is perfect for heavy-duty production line automation upgrades.
