Refurbished ABB IRB4600-20/2.50 Six-Axis Robot | 20kg Payload, 2.50m Reach, Flexible Installation
Refurbished ABB IRB4600-20/2.50 Six-Axis Robot | 20kg Payload, 2.50m Reach, Flexible Installation
Extra Information：
|
Brand:
|
ABB Robotics |
| Model: | IRB4600-20/2.50 |
| Product Type: | Articulated Industrial Robots |

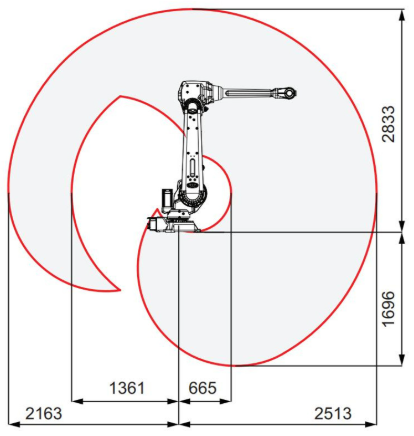

| Reach: | 2.5m |
| Payload: | 20 kg |
|
Number of axes:
|
6 Axes |
| Mounting: |
Floor/ Inverted / Tilted
|
| Protection: | Std: IP67. Option: Foundry Plus 2 |
| Controller: | IRC5 Single Cabinet |
| Controller: | IRC5 PMC Panel Mounted Controller |
| Controller: | OmniCore V250XT |
IRB 4600-20/2.50 is a long-reach light-load precision robot with rated payload of 20 kg and maximum reach of 2.50 m. It maintains excellent path accuracy during long-stroke movement with agile acceleration response.
Fully compatible with all mounting modes including overhead inverted installation, ideal for ceiling-mounted assembly, long-distance dispensing and precision inspection stations. Standard IP67 protection is offered, and cleanroom variant is optional for high-purity production.
Common applications cover precision component assembly, laser processing, adhesive dispensing, non-destructive testing and long-distance sorting of small workpieces.
