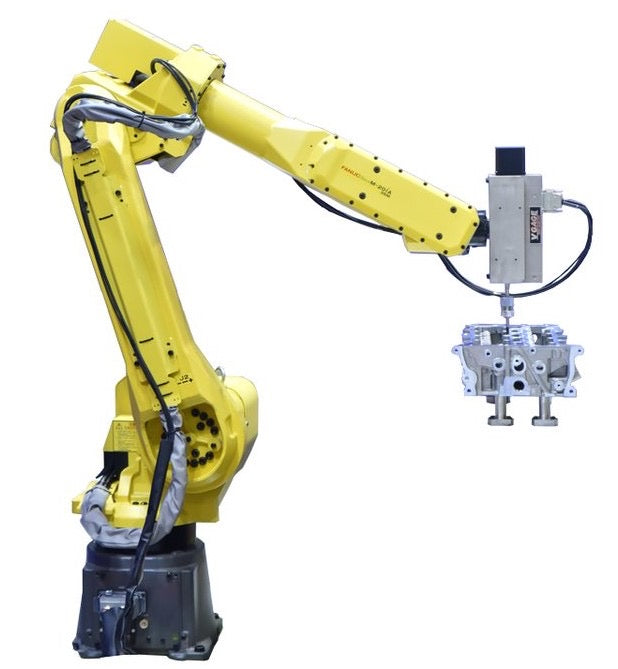

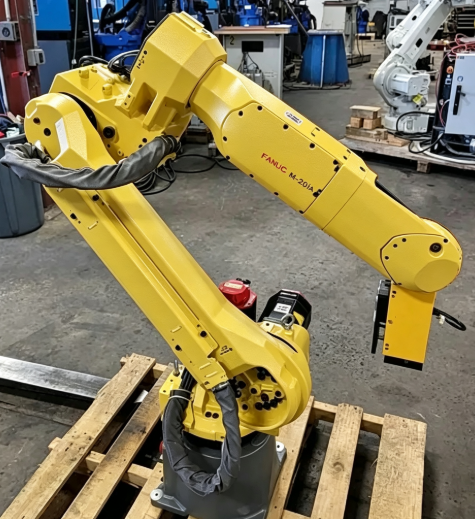

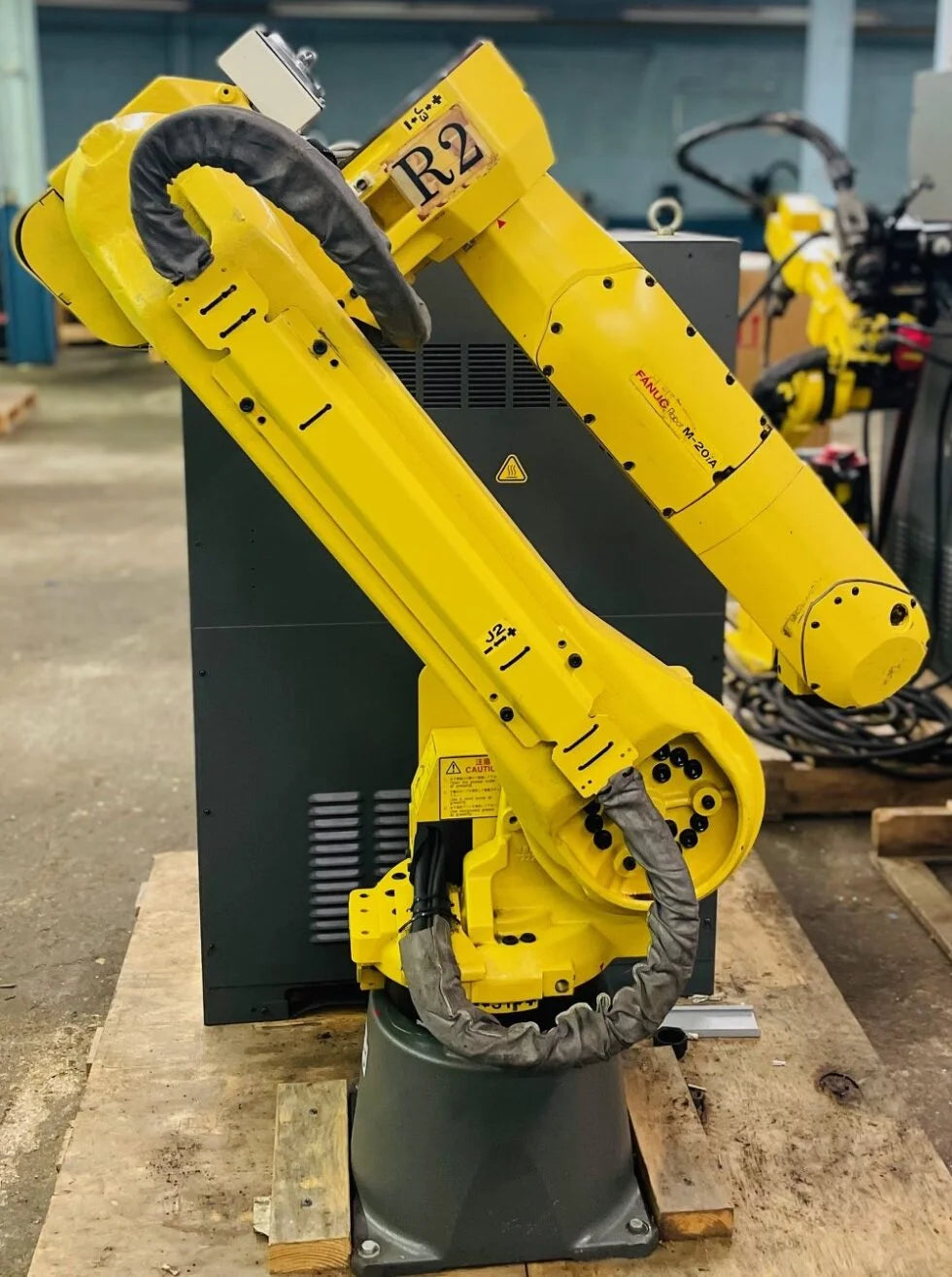

Reconditioned FANUC M-20iA/20M Multi-Mount Robot Ceiling Floor Tilt Installation with R-30iA Controller
Reconditioned FANUC M-20iA/20M Multi-Mount Robot Ceiling Floor Tilt Installation with R-30iA Controller
Extra Information：

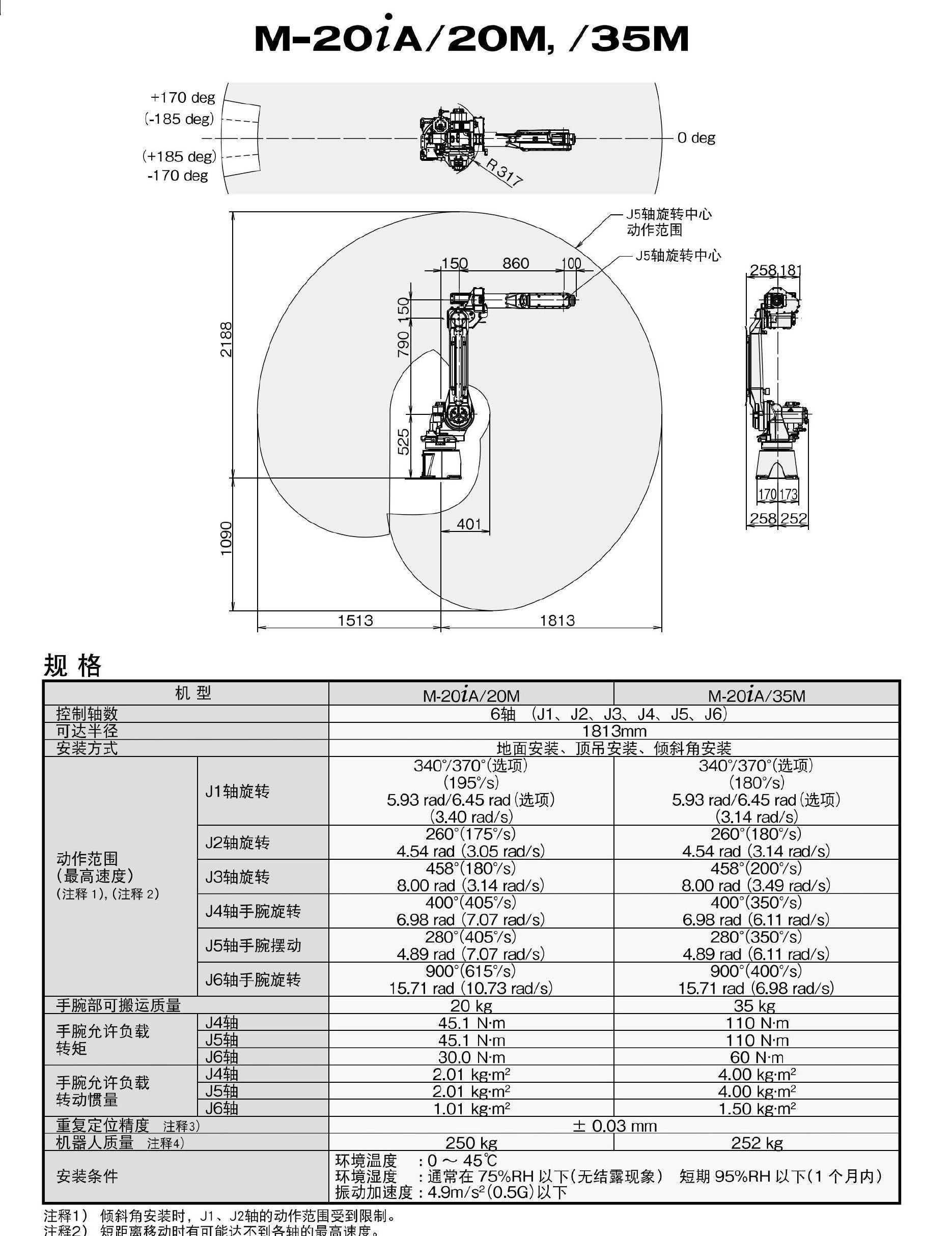

| Model: | FANUC Robotics |
| Model: | M-20iA/20M |
|
Product Type:
|
6 Axis Articulated Industrial Robot |
|
Base Dimension:
|
320mm×320mm |
|
Base Height:
|
565mm |
| Reach: |
1813mm
|
| Payload: | 20kg |
| Mounting: | Floor/Ceiling/Tilt-mount |
| Protection: | Std: IP54 |
| Controller: | R-30iA |
This pre-owned FANUC M-20iA/20M is a classic medium-payload robot widely deployed in global CNC machining and die-casting workshops. Featuring a solid high-rigidity wrist (different from hollow-wrist variants), it delivers superior rigidity, impact resistance and inertia tolerance for heavy-fixture clamping and high-frequency pick-and-place tasks. It offers 20kg rated payload, 1813mm maximum reach, and 6-axis full-degree-of-freedom movement for dead-angle-free operation.
All M-20 robots support floor, ceiling and tilt mounting with no custom hardware required, suiting compact layouts, multi-machine stations and high-position picking to save factory floor space. Powered by the reliable R-30iA controller, it features low failure rates and supports ROBOGUIDE offline simulation for fast cell validation and on-site commissioning.

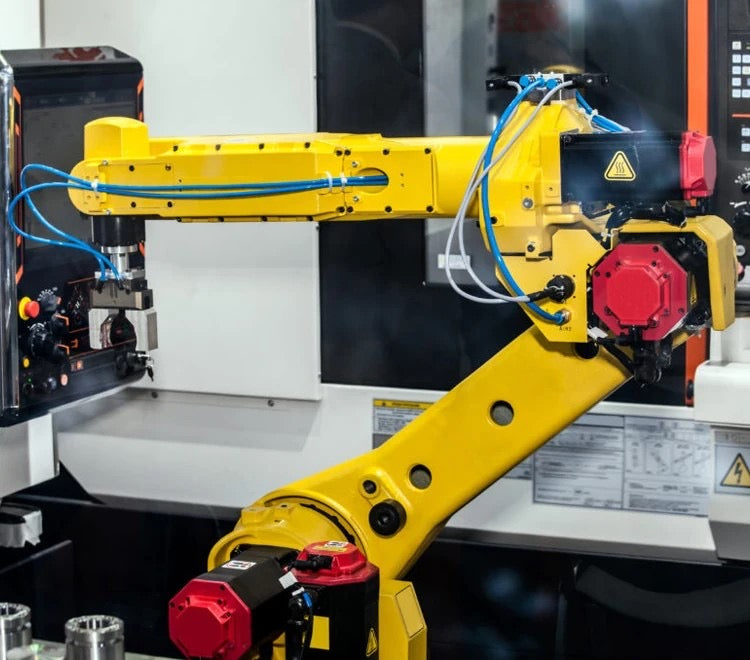

Popular for CNC machine tending, hot die-cast part handling, component transfer, assembly, deburring and multi-station cycling, it stands as a cost-effective high-inertia handling option among pre-owned medium-duty robots.
