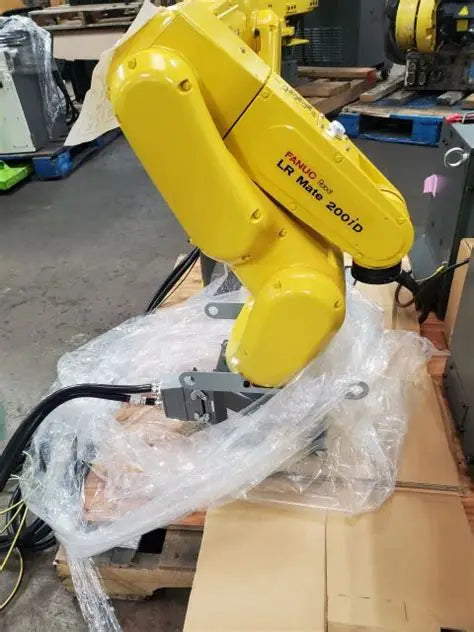

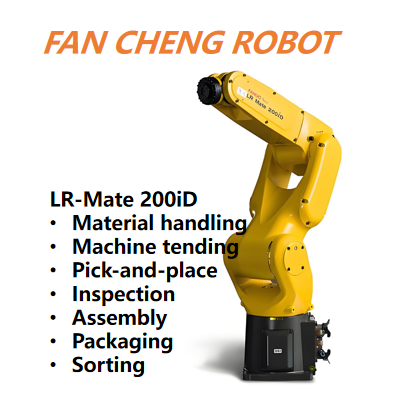

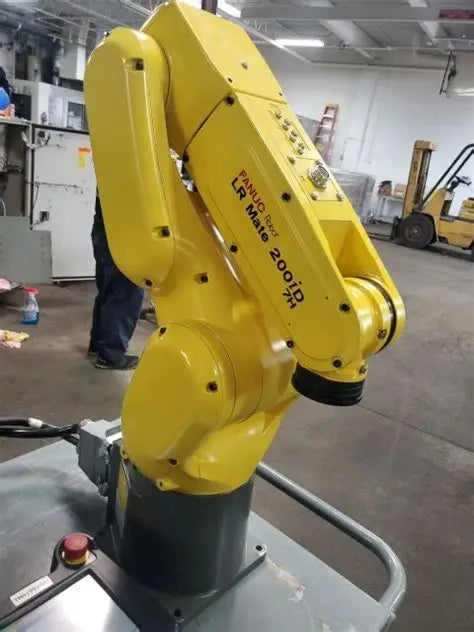

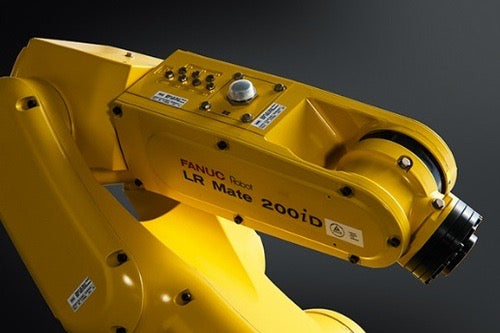

Pre-owned FANUC LR-Mate 200iD Versatile 6-Axis Compact Robot, Balanced 7kg Payload For General-Purpose Small-Cell Automation
Extra Information:
|
Brand:
|
FANUC Robotics |
| Model: | LR-Mate 200iD |
| Product Type: | 6 Axis Articulated Compact Robot |
| Base Dimension: | 190mm×190mm |
| Base Height: | 236mm |
| Reach: | 717mm |
| Payload: |
7kg
|
| Mounting: |
Floor/Ceiling inverted/Tilt-mount
|
| Protection: | Std: IP67, Optional: IP69K |
|
Controller:
|
R-30iB Plus |
|
Controller:
|
R-30iB Mate |

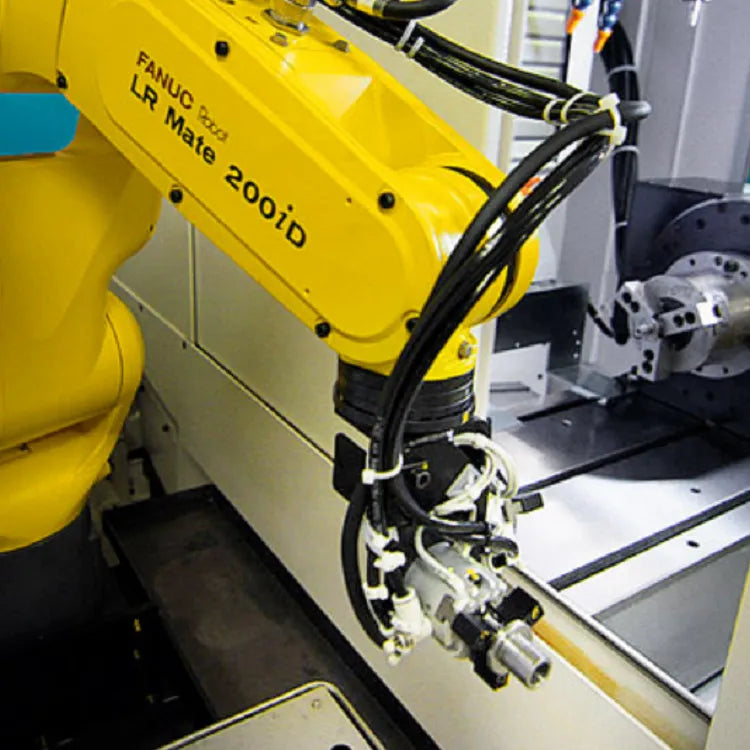

This pre-owned FANUC LR-Mate 200iD acts as the true all-round workhorse within the LR-Mate robot family, achieving excellent balance among payload, working reach, body dimension and installation flexibility, covering most mainstream small-and-medium automation cell requirements across different industries. Equipped with full 6-axis dexterous wrist structure, the robot can realise arbitrary spatial orientation adjustment for end-effectors, so it is capable of handling diverse process tasks including multi-variant machine tending, complex component assembly, surface deburring and grinding, precision dispensing, workpiece testing and visual-guided pick-and-place. Wide-range mounting options including floor, ceiling inverted and tilt installation allow engineers to integrate it into machine sides, inside protective enclosures or above production lines to save valuable workshop ground space. Arm and wrist adopt IP67-grade protection to cope with ordinary industrial dust, metal chips and coolant splashes, adapting to multi-shift continuous manufacturing conditions. Whether for new compact automation cell building or retrofitting existing manual stations, this versatile unit offers proven stable performance and rich software function support to satisfy general-purpose flexible production demands.
