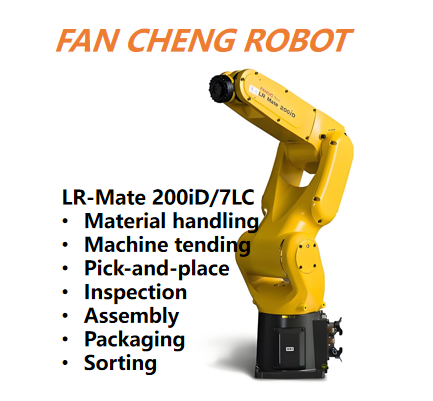

Pre-owned FANUC LR-Mate 200iD/7LC Long-Reach Clean-Room Robot, Extended-Radius Mid-Payload Controlled-Environment Handling
Extra Information:
|
Brand:
|
FANUC Robotics |
| Model: | LR-Mate 200iD/7LC |
| Product Type: | 6 Axis Long-Reach Articulated Robot |
| Base Dimension: | 190mm×190mm |
| Base Height: | 236mm |
| Reach: | 911mm |
| Payload: |
7kg
|
| Mounting: |
Floor/Ceiling inverted/Tilt-mount
|
| Protection: | Std: IP67, Clean-room optimized |
|
Controller:
|
R-30iB Plus |
|

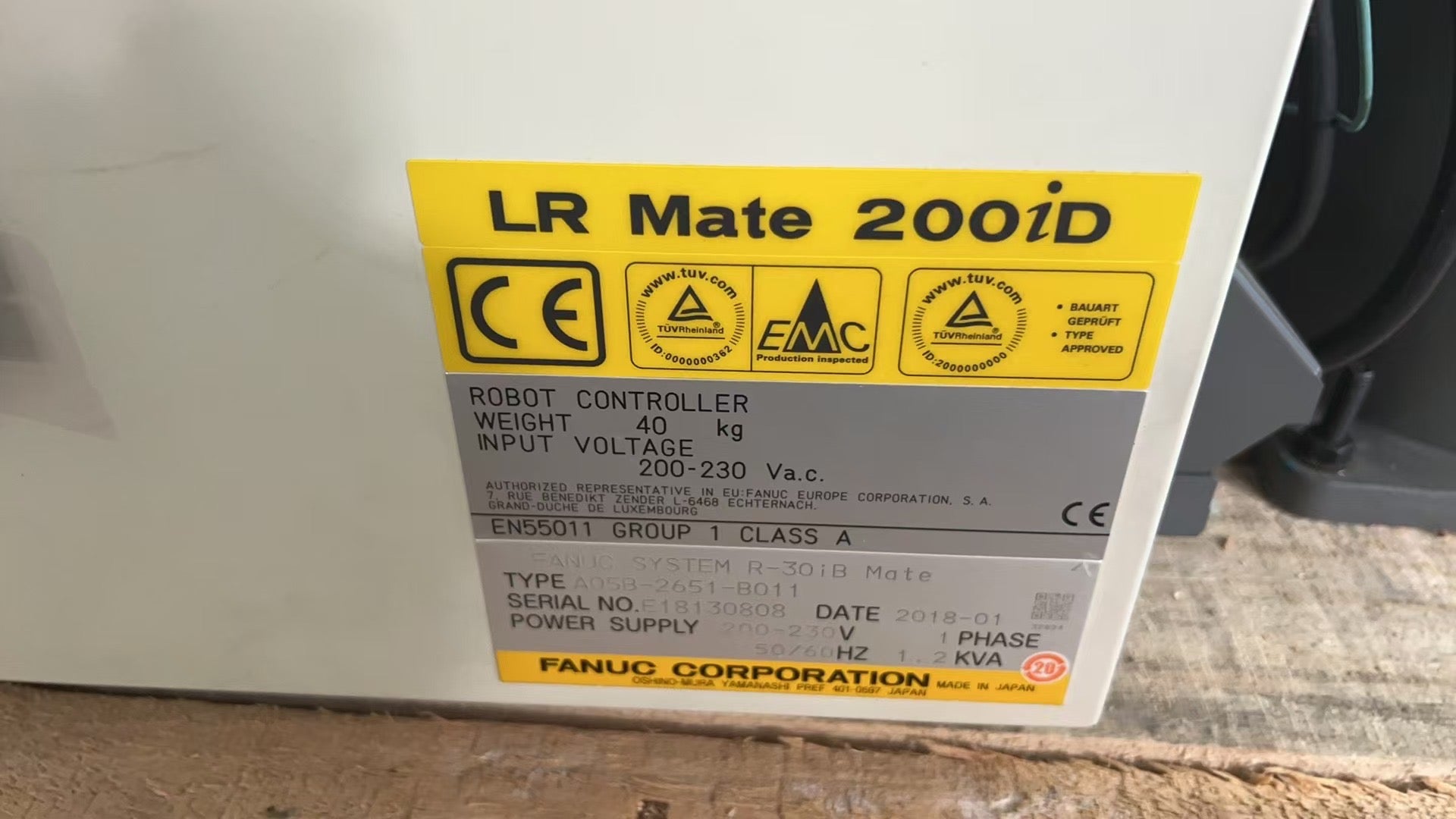

Controller:
|
R-30iB Mate |
This pre-owned FANUC LR-Mate 200iD/7LC integrates long-reach 911 mm working radius together with full clean-room optimized mechanical structure, targeting clean-zone production processes that demand both wide operating span and low-particle emission performance. All joints adopt high-tightness sealing design, and outer surface uses special anti-contamination finishing to minimise particle generation during large-range arm movement, avoiding contaminating high-value workpieces inside clean-room environment. Full 6-axis flexible wrist enables complex multi-angle manipulation for precision modules and components over relatively long working distance. Multi-mounting compatibility allows engineers to arrange stations inside space-constrained clean-room factories, without resorting to much larger clean-robot models. It delivers steady repeated positioning accuracy under continuous cyclic duty, supporting wide-span clean-zone material transfer, long-distance electronics assembly and other sophisticated controlled-environment automation workflows
